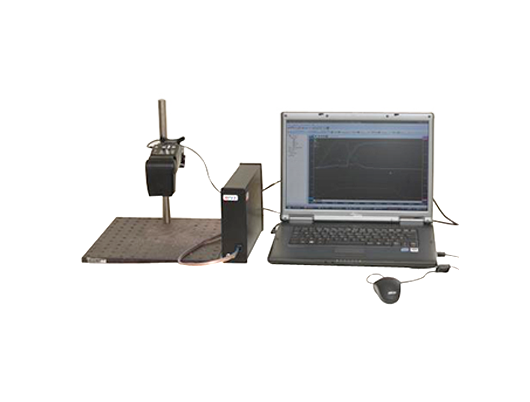

测试聚光多结太阳能电池与接收器:

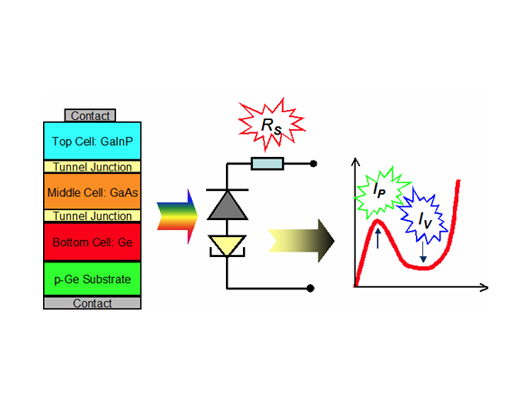

RPV测试:1000倍脉冲光下,串联电阻Rs,隧道结的峰值电流Ip与峰谷电流Iv;
IV特性曲线:脉冲光下IVP曲线,Isc,Voc,Pmax,FF,效率等参数;连续光IV曲线IV-CW;
BPD旁路二极管:正向导通电压,动态电阻,反向漏电;
手动,半自动,全自动多种型号可提供
Up to 1,000x suns, CPV Cell Size: from 2mm*2mm to 10mm*10mm ;
IV-CW option of testing the CPV cell: 0.2~2.0 sun.
