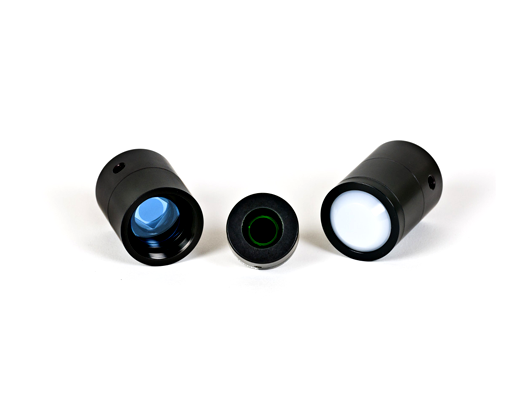

211：照度探头
263：照度探头-微型
268P：照度探头-薄型
424：LED测试探头
211 | 263 | 268P | 424 | |
标准校准(s) | lux; fc | lux; fc | lux; fc | 光强(cd) CIE127 条件: A and B |
光学滤光片精度 | < 1.0% | < 1.0% | < 1.0% | / |
CIE V(λ) 功能 | < f1' ≤ 3% | < f1' ≤ 3% | < f1' ≤ 3% | / |
探头活动面积 (cm2) | 1 | 0.34 | 1 | / |
动态范围 | 1.0E-02 - 5.0E+05 lux | 5.0E-01 - 5.0E+05 lux | 1.0E-03 - 2.0E+04 lux | 1.0E-04 - 5.0E+04 cd |
典型响应 | 3.2E-09 A/lux @555 nm | 7.3E-10 A/lux @555 nm | / | / |
特征 | High accuracy photometric filter (f'1 < 3%) | High accuracy photometric filter (f'1 < 3%) | High accuracy photometric filter (f'1 < 3%) | / |
兼容组件 | 2525; 2500; 1153; 1120; 116; 124; 114; 105; 106; 107 | 2575; With adaptor #1718: 2525; 2500 | / | / |
